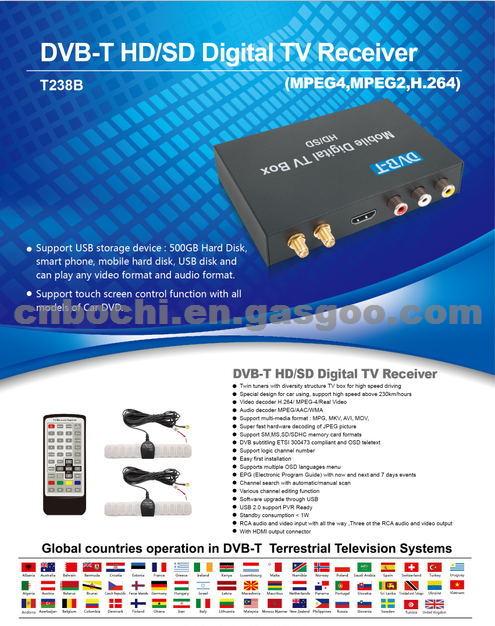

DVB-T Receiver For Car Using TV Receiving
Support:MP4
Screen Size:4inch
G.W:1kg
Product size:5inch
Out Power:4*45w
Color:Black
Voltage:12v
Video System:AUTO
all cars
Specification RF Input: UHF:470MHz~862MHz VHF:174MHz~230MHz Input Impedance:75 Signal Level:-80dBm~-10dBm Connector Type: SMA type terminal×2 Channel Band Width: 6M/7M/8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/32, 1/16, 1/8, 1/4 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 COFDM Carrier Mode: 2K And 8K Non Hierarchical/Hierarchical Transport Stream: MPEG-4AVC/H.264 HP@L4 MPEG-2 MP@HL/ML Video Aspect Ratio: 4:3/16:9 Video System: PAL/NTSC Video Output: 1±0.3Vpp Video Resolution YPbPr Resolution: 720*576@25fps/720*480@30fps/HD 1920×1080p/1920×1080i Audio Decoder: MPEG-2/HE_AAC(DD/DD +optional) Audio Channel: R/L/ST Audio Output: 1Vpp 47Kohm Adjustable With E Volume Power Cable And Jack: 4Pins: 1. DC+12~24V Input 2. ACC 3. GND 4.NC IR Extension Jack: For IR Extension Box A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2 Upgrade and Multimedia Port: USB S-AV connector : Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)2 Ouput Jack: Video RCA Jack×2 ANT1,ANT2 Input Jack: Female SMA Type Operating Temperatuer:-10~+50 Storage Temperatuer:-40~+65 Power Supply: DC+12V~24V±10% Power Consumption: Running: 4.5W Max. Standby: <0.85W. Dimension: 25(H)*118(L)*78(W) mm
